Automatic Spray Painting System

Automatic Spray Painting System
Automatic Spray Painting System
Product Code : 27
Product Description

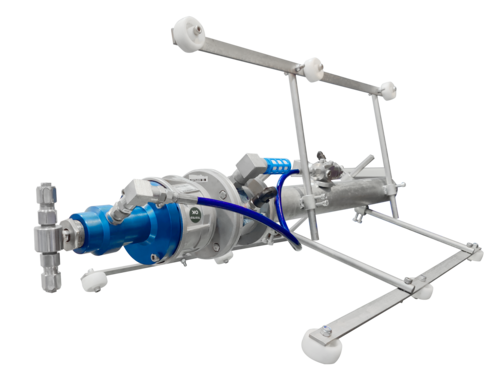

INTERNAL PIPE COATING MACHINE:

Jaguar Heavy Duty Spray Coating attachment are designed to apply internal coatings to pipe. These attachments have a pneumatic driven spray head that will spray most all coatings from the thinnest to the most viscous. The coating to be applied is fed to the spray head through a fluid manifold for maximum material disbursement. All tools include pipe centring carriages. These tools are suitable to spray the internal diameter of pipe from 3” to 75”.



These Coating Tools are generally fed paint by airless spray pump. To get perfect results use appropriate delivery system for your specific coating to assure an even and consistent dry film thickness throughout the pipe.

The Jaguar Internal Pipe Coating Attachment provides an innovative and efficient solution to the difficult job of applying paint to the inside of pipe, conduit, tubing or other cylindrical structures. With the Internal Pipe Coating Attachment you can apply a uniform layer of paint at remarkable speed.

There are three types of Internal pipe coating attachment:

1.      Hollow cone nozzle type.

2.      Bell type internal pipe coating attachment

3.      Rotary nozzle type internal pipe coating attachment.



v  Hollow cone nozzle type attachment:

Hollow cone nozzle type internal pipe coating attachment covers pipe diameters from 2”-6”



v  Bell type internal pipe coating attachment:

     Bell type internal pipe coating attachment covers pipe diameters from 8”-16”.

v  Rotary nozzle type internal pipe coating attachment:

Internal Pipe Coating Attachment (Rotary Nozzle type) covers pipe diameter from 16”- 75”









FEATURES:

Efficiently handles wide range of coatings
• Applies uniform layer at remarkable speed
• No need to rotate the pipe or tubing
• Précised flow of paint can be controlled by Auto gun mounted on system
• Centering carriage legs easily adjust for different pipes.

       Simple Solution for Industrial Coating.

Used with any JAGUAR airless paint spray pump, Internal Pipe Coating Attachment provides an innovative and efficient solution to the difficult job of applying paint to the inside of pipe, tubing or other cylindrical structures. With the Internal Pipe Coating Attachment you can apply a uniform layer of paint at remarkable speed.



       Easy Set Up and Operation
Internal Pipe Coating Attachment set up is quick and easy (the pump size will depend upon paint viscosity, hose length, and tip size). It is powered by compressed air, which operates the rotating head and the carriage legs.



       A Simple, Fast, and Cost-Effective Job
Internal Pipe Coating Attachment offer an effective and precise method of coating pipe. The investment will reward you with the highest rate of speed and most accurately-applied coating, saving you time and money.
